LG2C2L/F(2-Cavity)
LG4C2L/F(4-Cavity)
LG6C1L/F(6-Cavity)
LG1C5L/F(1-Cavity)
LG2C5L/F(2-Cavity)

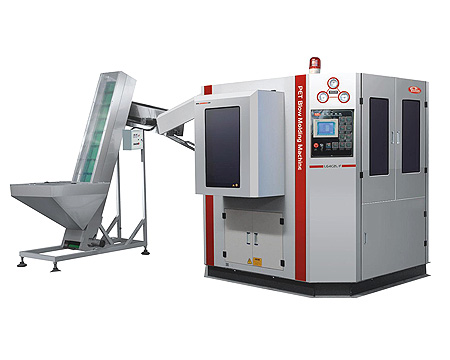

¡ðAutomatic preform input and ready bottle output system.
¡ðMachine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum,and ensure that the life of components using will not affected from mechanical vibrations.
¡ðMachine adopt modular assembly methods,greatly decrease the local amendments due to technological improvements when the machine is on processing.
¡ðIn order to ensure the rate of fonished products, the oven which used in measuring the performance of the machine, sit in a very important position. The structure oven adopt the intemational most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
¡÷Technical Specifications:
|
General Information |
LG2C2L/F |
LG4C2L/F |
LG6C1L/F |
LG2C5L/F |
LG1C5L/F |
Container
|
Theoretical output Max container volume Max neck diameter Max container diameter Max container height Number of cavity
|
2500 pcs/hr 1.5L 45mm 100mm 340mm 2 Cavity |
4000pcs/hr 1.5L 45mm 100mm 340mm 4Cavity |
6000pcs/hr 0.6L 45mm 67mm 270mm 6Cavity |
1200pcs/hr 5L 50mm 175mm 350mm 2Cavity |
750pcs/hr 5L 50mm 175mm 350mm 1Cavity |
Electrical System
|
Total power Use power |
25kw 15kw |
35kw 21kw |
45kw 27kw |
40kw 25kw |
25kw 15kw |
Air System
|
Working pressure Low pressure consuming Blowing pressure High pressure consuming |
1.0 Map 1400L/min ¡Ü3.5Mpa 1200L/min |
1.0 Map 1600L/min ¡Ü3.5Mpa 2400L/min |
1.0 Map 1600L/min ¡Ü3.5Mpa 3600L/min |
1.0 Map 1600L/min ¡Ü3.5Mpa 2400L/min |
1.0 Map 1400L/min ¡Ü3.5Mpa 1200L/min |
Chiller Water
|
Operating pressure Temperature Flow rate |
0.3-0.5Mpa 10-12¡æ 30L/min |
0.3-0.5Mpa 10-12¡æ 45L/min |
0.3-0.5Mpa 10-12¡æ 75L/min |
0.3-0.5Mpa 10-12¡æ 45L/min |
0.3-0.5Mpa 10-12¡æ 30L/min |
Machine
|
Machine dimension Machine weight Feeding Machine dimension Feeding Machine weight |
1.9¡Á1.6¡Á2.0m 1300kg 2.0¡Á1.0¡Á2.0m 200kgs |
2.5¡Á2.0¡Á2.0m 2200kg 2.0¡Á1.0¡Á2.0m 220kgs |
4.2¡Á2.0¡Á2.0m 4200kg 2.0¡Á1.2¡Á2.0m /2.1¡Á0.9¡Á2.0m 200kgs |
2.5¡Á2.0¡Á2.0m 1900kg 2.0¡Á1.0¡Á2.0m 200kgs |
2.0¡Á1.4¡Á2.0m 1600kg 2.0¡Á1.0¡Á2.0m 200kgs |
¡¤Actual discharges depend on bottle shape and preform qualification.
¡¤The above technical parameters are subject to continual update, please rake the real product as the base.
